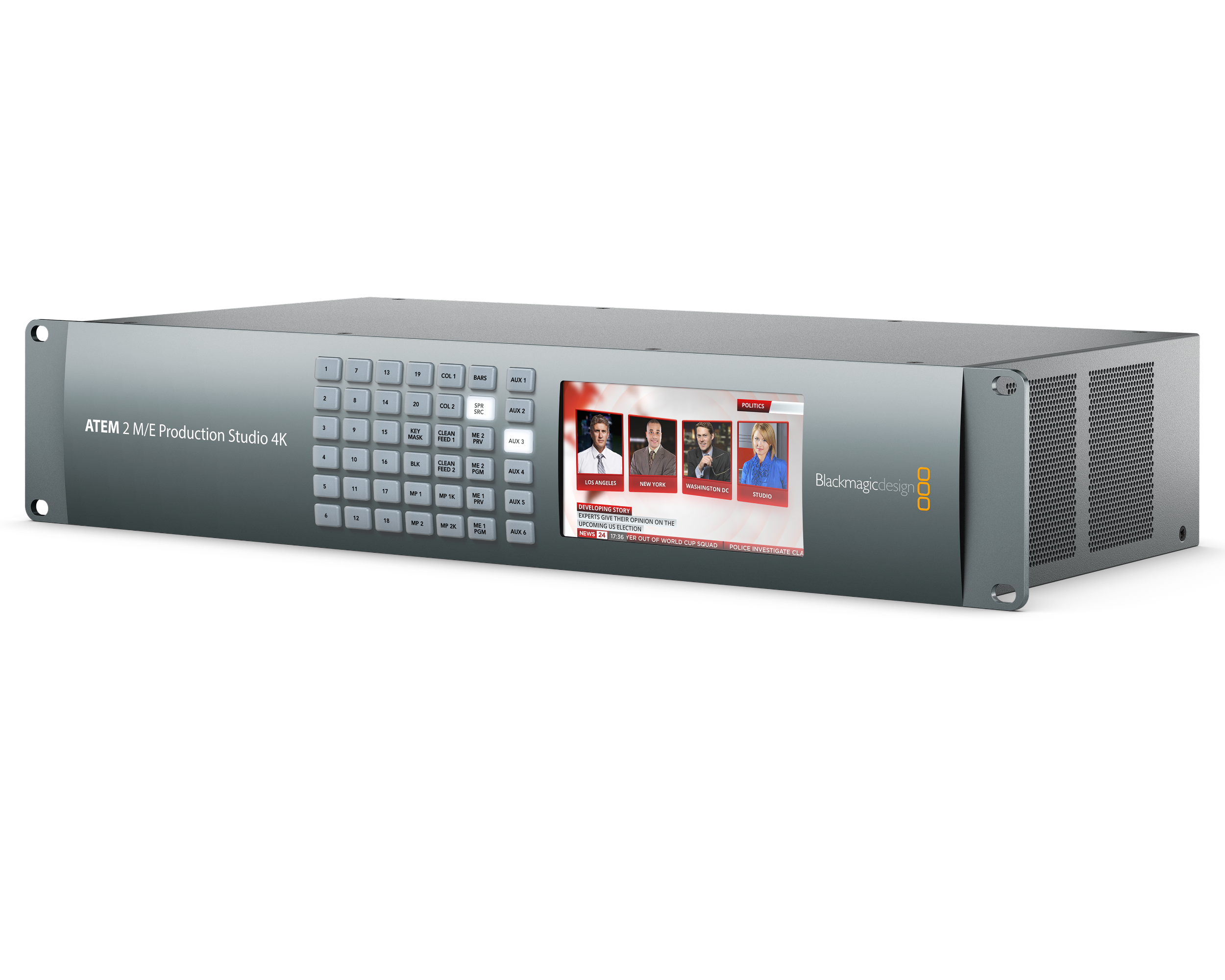

ATEM 2 M/E Production Studio 4K
$7095
Product Code:
SWATEMPSW2ME4K
The new ATEM 2 M/E Production Studio 4K lets you produce broadcast quality live multi camera production in SD, HD or amazing Ultra HD! Featuring 20 inputs with built in re-synchronizers so you can connect the widest range of video sources such as cameras, disk recorders and computers for incredible live music, sport and more! ATEM 2 M/E Production Studio 4K has advanced broadcast features such as chroma key, customizable transitions, upstream and downstream keyers, DVE, Super Source, audio mixer, 2 x multi views, media pool and more! You also get 6G-SDI and HDMI 4K connections and 6 auxiliary outputs for the most advanced live production switching!
Product Highlights
- Supports NTSC/PAL/HD/UltraHD 4K @ 10-bit
- Supports 4K Resolution Over SDI or HDMI
- 20 x 6G-SDI & 1 x HDMI Inputs
- Tri-Sync/Blackburst Ref. Sync Input
- 10 x Built-In Frame Synchronizers
- Two Independent Multi-View Outputs
- Program Outputs in SD/HD/4K HD
- 4 Upstream & 2 Downstream Keyers
- 22-Input Audio Mixer
- Hardware or Software Mac/PC Control
See moreSee less
Tech Spec's

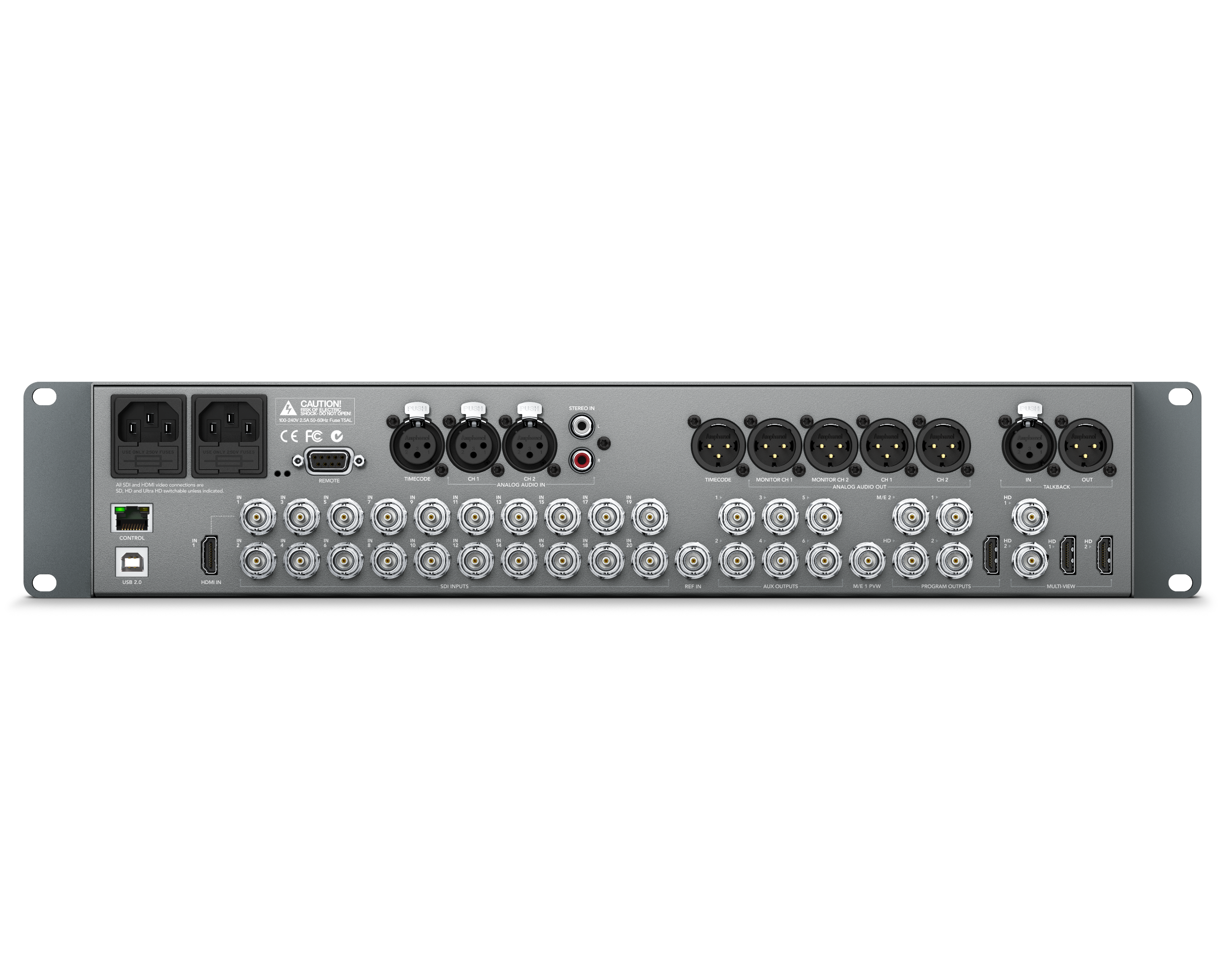

Connections
Total Video Inputs
21 with 20 active
Total Video Outputs
16
Total Aux Outputs
6
SDI Rates
270Mb, 1.5G, 3G, 6G.
Total Audio Inputs
2 x XLR. 2 x RCA.
Total Audio Outputs
2 x XLR Program 2 x XLR Monitor.
Timecode Connection
1 x XLR in and 1 x XLR out.
Reference Input
Tri-Sync or Black Burst.
Video Input Re-Sync
On all 20 inputs.
SDI Video Inputs
20 x 10-bit SD/HD/Ultra HD 4K switchable. 2 channel embedded audio.
HDMI Video Inputs
1 x HDMI type A. 10-bit SD/HD/Ultra HD 4K switchable. 2 channel embedded audio.
SDI Audio Outputs
2 Ch embedded into SDI output on all outputs.
SDI Program Outputs
3 x 10-bit SD/HD/Ultra HD 4K switchable.
HDMI Program Outputs
1 x HDMI type A, 10-bit SD/HD/Ultra HD 4K switchable.
Down Converted SDI Program Outputs
1 x 10-bit (Ultra HD 4K to HD).
SDI Preview Outputs
1 x 10-bit SD/HD/Ultra HD 4K switchable.
Total Multi Views
2
SDI Multi View Outputs
2
HDMI Multi View Outputs
2
Control Panel Connection
Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network.
Tally Output
Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included.)
Computer Interface
1 x USB 2.0 port.
Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p50, 1080p59.94
1080i50, 1080i59.94
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 424M.
Video Sampling
4:2:2
Color Precision
10-bit
Color Space
REC 601, REC 709, REC 2020.
HDMI Input Resolutions for Computers
720 x 480i 59.94Hz,
720 x 576i 50Hz,
1280 x 720 59.94Hz,
1280 x 720 50Hz,
1920 x 1080 50Hz,
1920 x 1080 59.94Hz,
3840 x 2160 23.98Hz,
3840 x 2160 24Hz,
3840 x 2160 25Hz,
3840 x 2160 29.97Hz.
Note: Also supported are; 24, 30 and 60 Hz inputs when switcher is in 23.98, 29.97 and 59.94 Hz formats respectively.
Product Specifics
Upstream Keyers
4 with Chroma/Linear/Luma key.
Downstream Keyers
2
Chroma Keyers
4
Talkback Support
None
Mix Minus Support
None
Linear/Luma Keyers
7
Transition Keyer (Stinger/DVE)
1 Stinger, 1 DVE.
Total Number of Layers
13
Pattern Generators
8
Color Generators
2
DVE with 3D Borders & Drop Shadow
1
Control Panel
Software or optional hardware panel
Multi View Monitoring
Multi View Monitoring
2 x 10 Views for 20 total views.
Multi View Video Standard
HD.
Routable Windows
16
Tally
Red for program and green for preview indication.
Windows Source Labels
Yes
Media Player
Media Players
2
Channels
Fill and key for each media-player.
Media Pool Still Image Capacity
32 with fill and key
Media Pool Clip Capacity
2 with fill and key.
Media Player Clip Length in NTSC/PAL
3600 frames.
Media Player Clip Length in 720p
1600 frames
Media Player Clip Length in 1080
720 frames
Media Player Clip Length in Ultra HD 4K
180 frames
Media Pool Still Image Format
PNG, TGA, BMP, GIF, JPEG and TIFF.
Media Pool Video File Format
TGA Sequence.
Media Pool Audio File Format
WAV, MP3 and AIFF.
Display
Interface
Minimum monitor resolution of 1366 x 768.

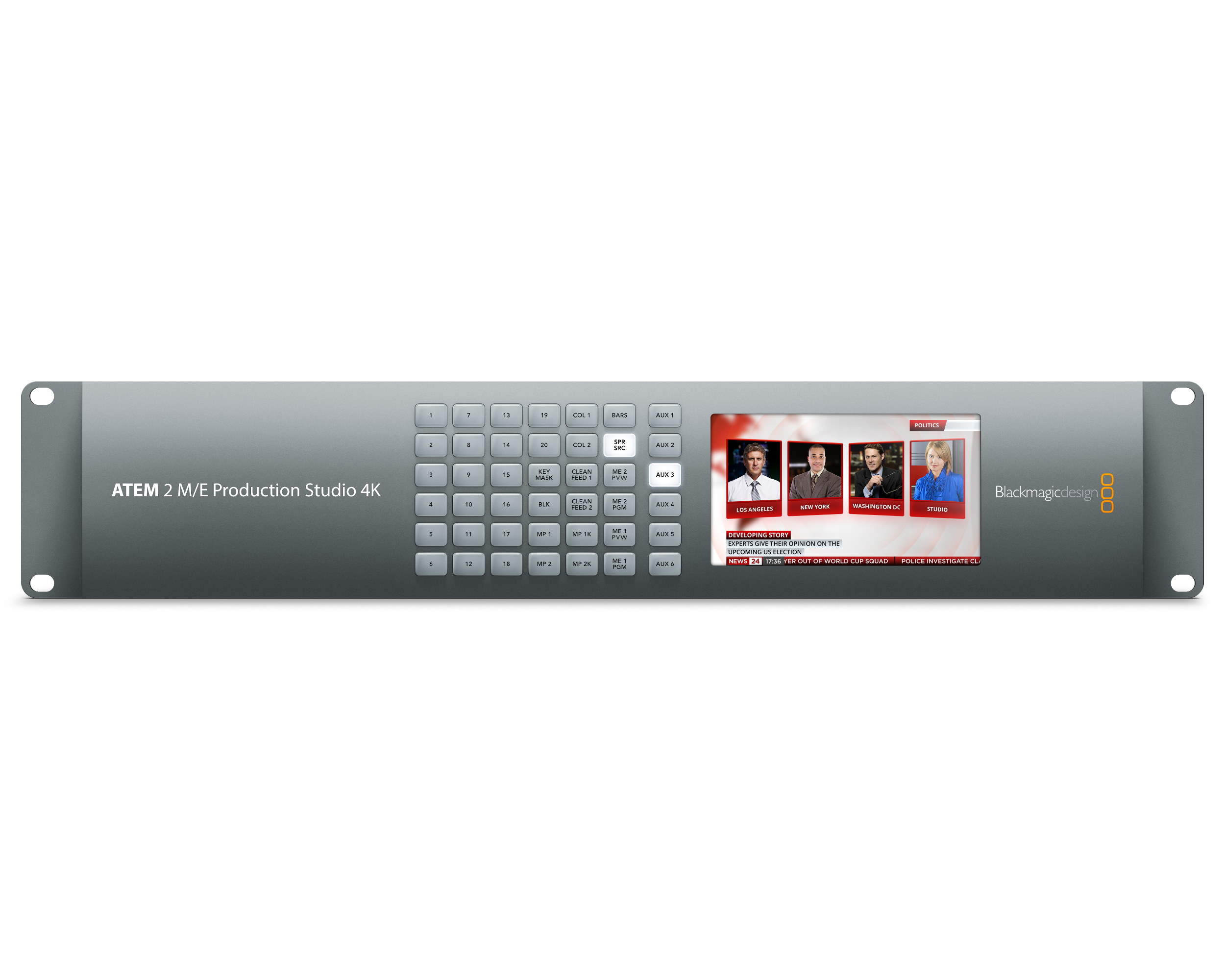

Front Panel
Built in LCD monitor for video and 42 LED buttons for Aux switching.
Processing
Colorspace Conversion
Hardware based real time.
Processing Delay
< 2 Lines
4K to HD Down Conversion
Yes, program x 1
Audio Mixer
22 input x 2 channel mixer.
Selectable On/Off/Audio-Follow-Video.
Level and Peak metering.
Master gain control.
Dedicated analog outputs for monitoring.
Software
Control Panel Included
ATEM Software Control Panel included free for Mac 10.12 Sierra, Mac 10.13 High Sierra or later and Windows 8.1 64-bit or Windows 10 64‑bit.
Software Updates
Using USB 2.0 connection directly connected to Mac OS or Windows computers. Includes ATEM Setup Utility.
Configuration
Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB to chassis.
Operating Systems
Mac 10.14 Mojave,
Mac 10.15 Catalina or later.
Windows 8.1 and 10.
Power Requirements
Power Supply
2 x Internal 100 - 240V AC.
Power Usage
150 W
Physical Specifications
Physical Installation
Physical Installation
2 Rack Unit Size.
Environmental Specifications
Operating temperature
0° to 40° C (32° to 104° F)
Storage temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 90% non-condensing
What's Included
ATEM 2 M/E Production Studio 4K
SD card with software and manual
Warranty
12 Month Limited Manufacturer's Warranty.
